220 kV Electrical Substation Complete Overview | Power Transmission Grid Station | Transformer, Circuit Breaker, Busbar, Isolator Working Explained | High Voltage Power System Engineering | Electrical Infrastructure Technology

Description
This video presents a detailed overview of a 220 kV electrical substation, one of the most important parts of modern power transmission and distribution systems. A 220 kilovolt substation plays a critical role in transmitting high voltage electricity over long distances and distributing it safely to lower voltage networks that supply cities, industries, and rural areas.
In a large electrical power system, electricity is generated at power plants and then transmitted through high-voltage transmission lines. High voltage transmission such as 220 kV is used because it significantly reduces transmission losses and improves efficiency over long distances. When electricity reaches a substation, it is controlled, protected, monitored, and distributed to other transmission or distribution networks.
A 220 kV grid substation contains many important components such as power transformers, circuit breakers, isolators, busbars, current transformers, potential transformers, lightning arresters, protection relays, and control panels. All of these components work together to ensure reliable power supply and safe operation of the electrical grid.
Power transformers inside the substation are used to step down voltage levels from 220 kV to lower voltage levels such as 132 kV, 66 kV, or 33 kV depending on the distribution network requirements. These transformers handle extremely high electrical loads and are designed for continuous operation in power systems.

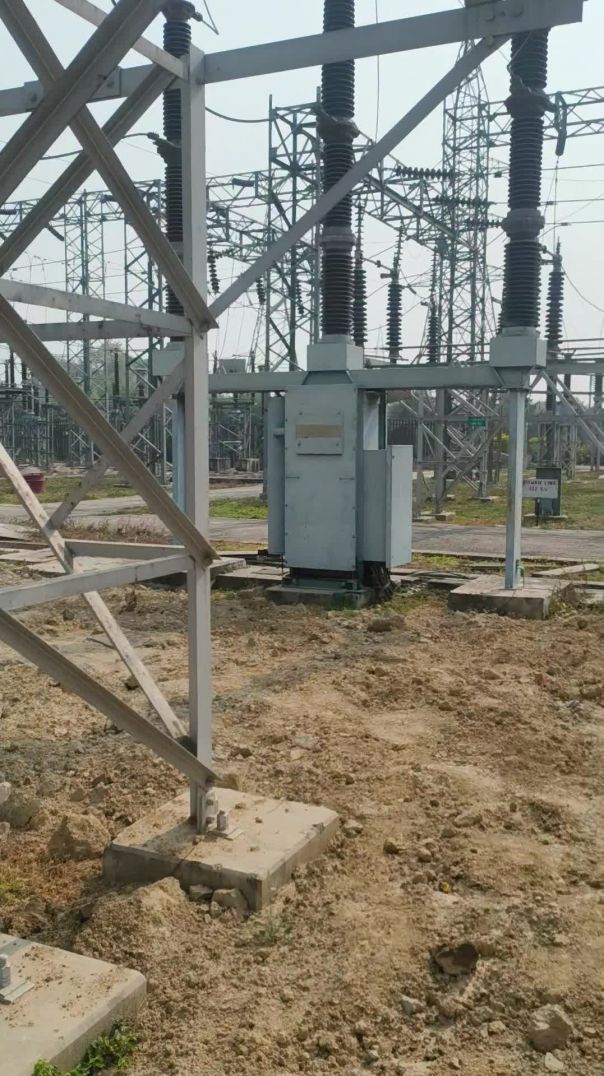

Circuit breakers are essential protection devices used to interrupt electrical current when faults occur. Modern 220 kV substations commonly use SF6 circuit breakers, which are capable of interrupting very high fault currents safely and quickly.
Isolators, also called disconnect switches, are used to isolate electrical equipment during maintenance. They provide visible isolation so engineers and technicians can safely work on equipment.
Busbars act as the central connection point of the substation. Incoming power lines connect to the busbar system, and from there electricity is distributed to transformers and outgoing feeders.
Current transformers (CT) and potential transformers (PT) are measurement devices used to monitor electrical parameters such as current and voltage. These instruments supply accurate signals to protective relays and monitoring equipment.
Lightning arresters protect the substation equipment from high voltage surges caused by lightning strikes or switching operations. These devices safely divert surge energy to the ground.
Protection relays constantly monitor system conditions. If abnormal conditions such as short circuits, overloads, or earth faults are detected, the relays immediately signal the circuit breakers to trip and isolate the faulted section.
Modern substations also use SCADA (Supervisory Control and Data Acquisition) systems that allow engineers to monitor and control equipment remotely from a central control room.
A well designed 220 kV substation ensures reliable power supply, system stability, and safe operation of the electrical network. These substations are essential infrastructure for national power grids and play a vital role in delivering electricity to homes, industries, hospitals, and commercial facilities.
Understanding how substations work is extremely important for electrical engineering students, power system engineers, technicians, and anyone interested in high voltage power systems and energy infrastructure.
This video demonstrates the equipment, structure, and working principles of a 220 kV electrical substation and explains how power flows through the grid from generation to distribution.
